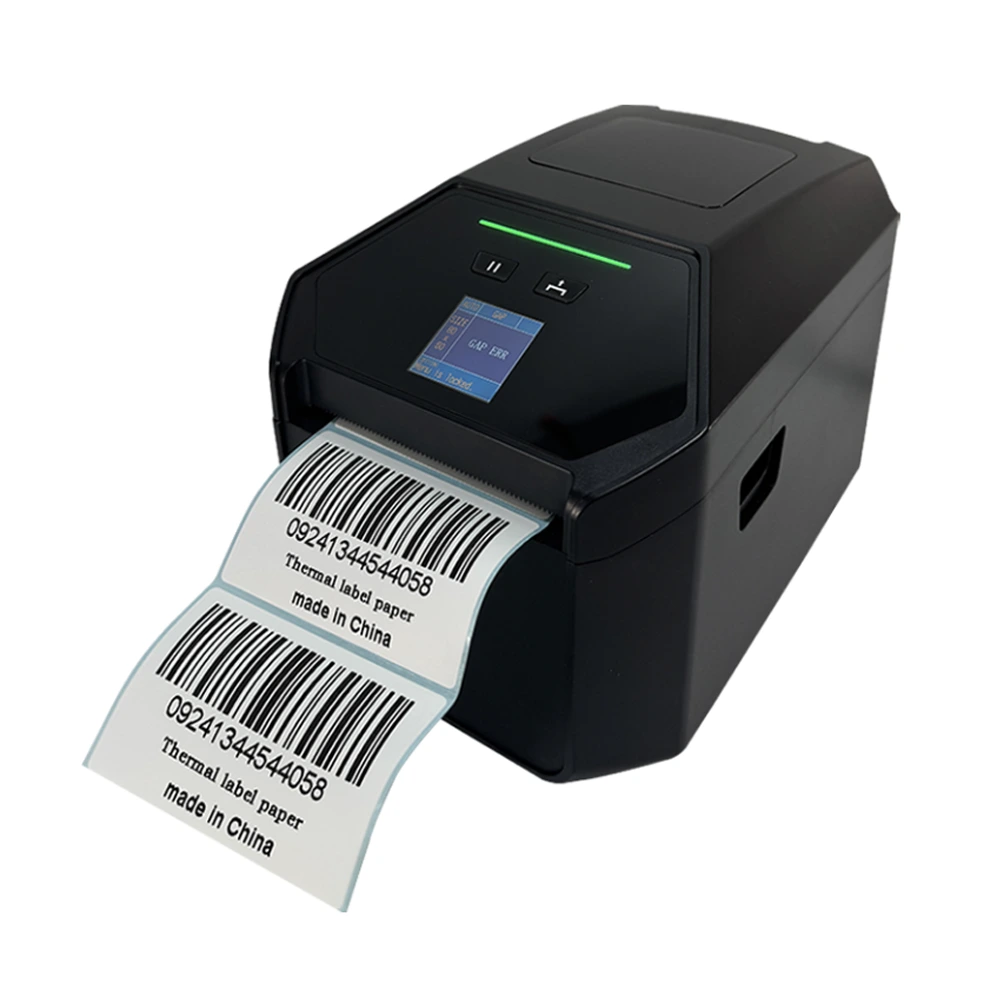

D9180 3 Inch Label Printer

Here’s a concise overview of the printer’s specifications from the image:

  • Printing Method: Thermal (Direct Thermal)
  • Printer Command Languages: ESC, TSPL
  • Heater Resolution: 203 DPI
  • Print Speed:
    • 152 mm/s (standard)
    • Upgradable to 200 mm/s
    • High-speed printing with smooth paper feeding
    • Toggle-type paper jam release lever
    • Auto-centering printing
    • Supports smaller labels
    • Automatic media detection (recognizes loaded paper/media)
    • Crisp print quality, stable performance
  • Print Width: 80 mm
  • Interface:
    • Standard: USB
    • Optional: USB + Bluetooth, USB + WiFi, USB + Serial Port + Ethernet
  • Media Width: 15–85 mm (with liner)
  • Media Type: Thermal sensitive bill paper, thermal label paper, black label paper (back mark)
  • Character Scaling / Rotation:
    • Scalable fonts
    • Rotation angles: 0°, 90°, 180°, 270°
  • Paper Roll Core Inner Diameter: 25.4 mm
  • Maximum Roll Outer Diameter: 100 mm
  • Direction: Front delivery
  • Power Input: DC 24V, 1.5A
  • Operating Environment: 5°C to 45°C, 20%–90% RH (non-condensing)
  • Storage Environment: -20°C to 55°C, 20%–93% RH (non-condensing)
